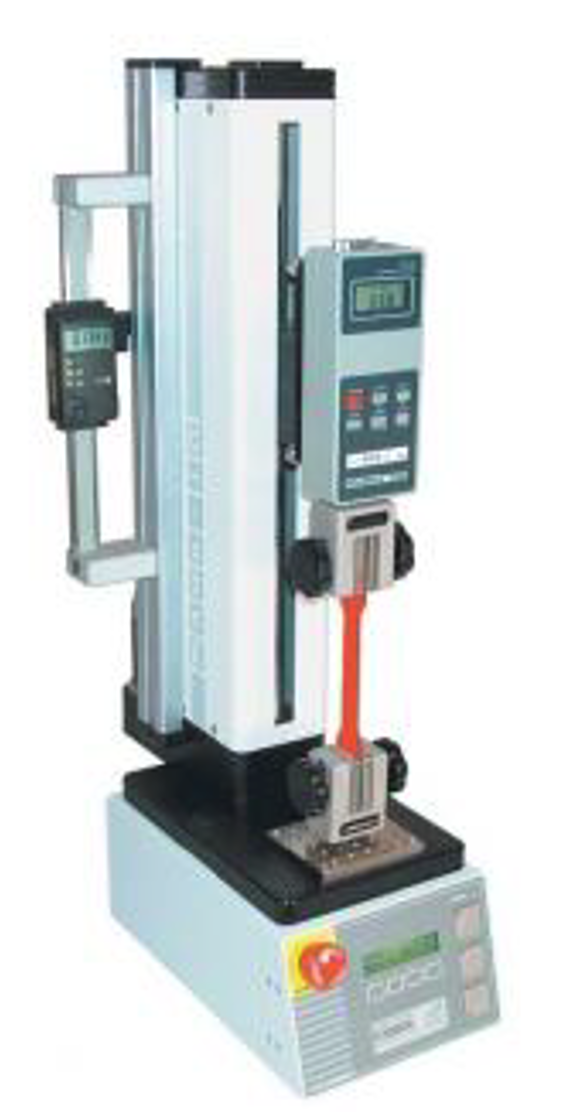

Fully Automatic Spring Testing Machine – ESM 600

This meter is suitable for both tension-as well as for pressure measurements up to a load of max. 1500 N. The test rig is programmable, so that test sequences can be carried out fully automatically. As an examples of the diverse applications are spring testing and strain measurements of wires and checking of tensile strengths. For the wide application a variety of fastening, holding and fixings are offered, belonging to Mark -10 as the standard program. The test rig can be operated at speeds from 0.5 to 1100 mm/min. The test sequences can be done fully automatic, for that programmable single steps are possible. The position of the end points and their residence as well as automatic retraction can be programmed freely. The control unit also can be operated manually.

Technical Data:

  • Kapazität: 1.5 kN @ up to 610 mm/min, 1 kN @ >610 mm/min
  • Vorschubgeschwindigkeit: 13 – 330 mm/min
  • Maximaler Verfahrweg: 600 mm Genauigkeit: ±0.2%
  • Speed variation with load: ±0% (stepper motor driven)
  • Endschaltergenauigkeit: 0,03 mm
  • Positioniergenauigkeit: ±0.05 mm
  • Wiederholgenauigkeit: 0,02 mm
  • Auflösung: 0,02 mm
